1715734
Manufacturer:
Phoenix Contact
Mfr.Part #:
1715734
Datasheet:
Description:

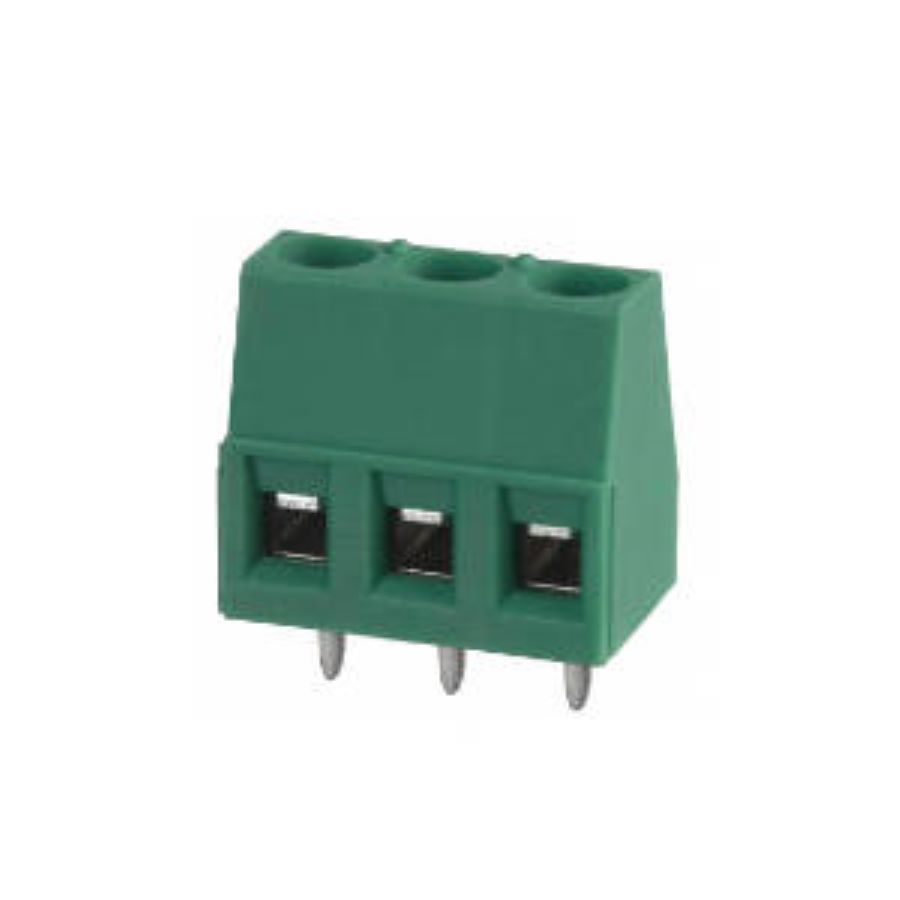

Terminal Blocks Through Hole 3 5.08 mm 15 A 300 V 30 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Length | 9.8 mm |
| Width | 17.78 mm |
| Termination | Screw |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 3 |
| Height | 17.3 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 9.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5.08 mm |
| Voltage | 300 V |
| REACH SVHC | No SVHC |
| Contact Material(Contact Finish) | Tin |
| Pitch | 5.08 mm |
| Current | 15 A |
| Current Rating | 15 A |
| Max Current Rating | 22 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL, cULus |
| Number of Circuits | 3 |
| Orientation | Straight |
| Max Supply Voltage | 250 V |
| Color | Green |
| Number of Contacts | 3 |
| Number of Poles | 3 |
| Connector Type | Screw |
| Wire/Cable Gauge | 26 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 14 AWG |
| Housing Color | Green |
| Stripping Length | 7 mm |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 14 AWG |
Stock: 197
Distributors
pcbx
pcbxUnit Price$0.67949
Ext.Price$0.67949
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.67949 | $0.67949 |
| 10 | $0.57504 | $5.75040 |
| 25 | $0.54593 | $13.64825 |
| 50 | $0.51829 | $25.91450 |
| 100 | $0.49205 | $49.20500 |
| 300 | $0.46714 | $140.14200 |
| 500 | $0.44348 | $221.74000 |
| 1000 | $0.42661 | $426.61000 |
